Porsche details electric Cayenne's wireless charging

Owning an electric car usually involves a specific routine. You drive home, open the charge port, wrestle with a thick cable, and plug it in. It is not difficult, but it is a manual task that drivers must repeat every now and then, depending on how much they drive. Porsche wants to change this habit with the new Cayenne Electric. The German automaker is introducing a system that lets the car refuel itself without anyone touching a cable.

This technology is called inductive charging. Most of us already use a smaller version of this tech - it is the same method used to charge smartphones by simply placing them on a pad. Porsche has taken this concept and scaled it up for a heavy SUV. The company claims it is the first manufacturer to offer this specific type of contactless charging as a factory option.

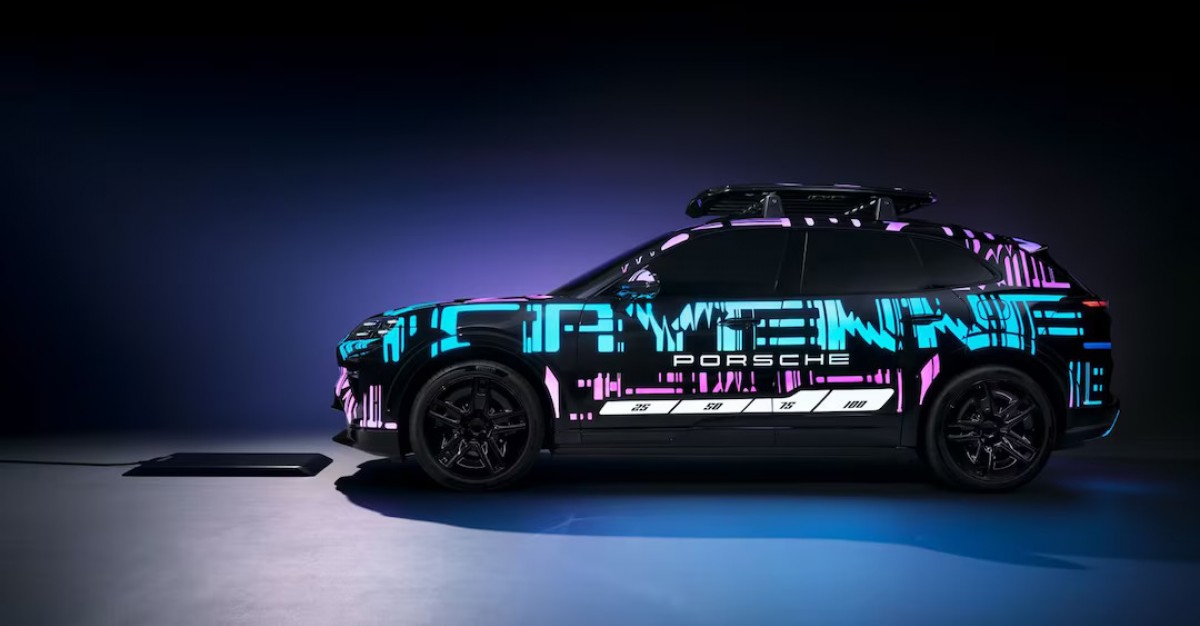

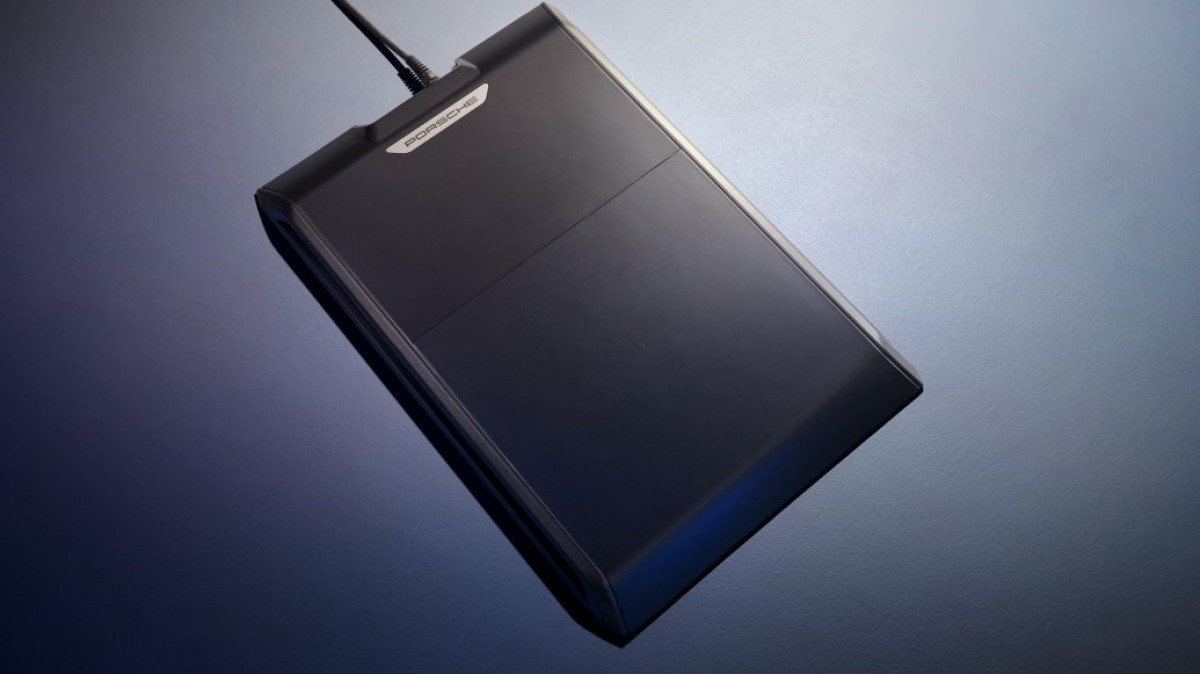

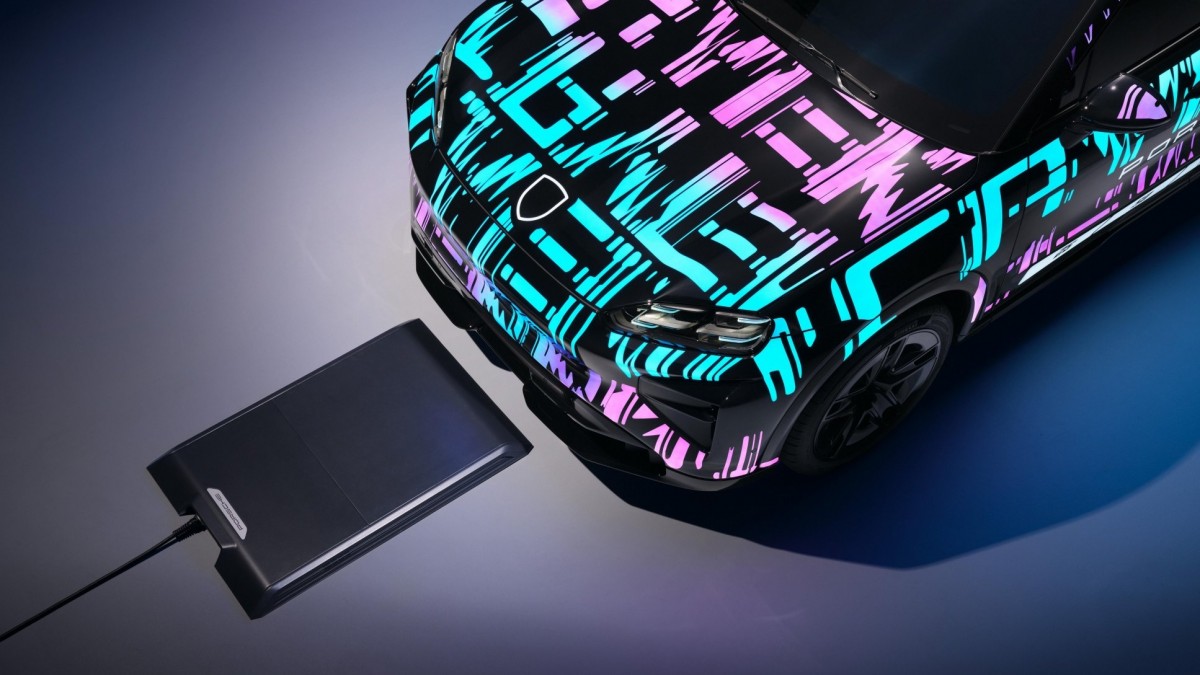

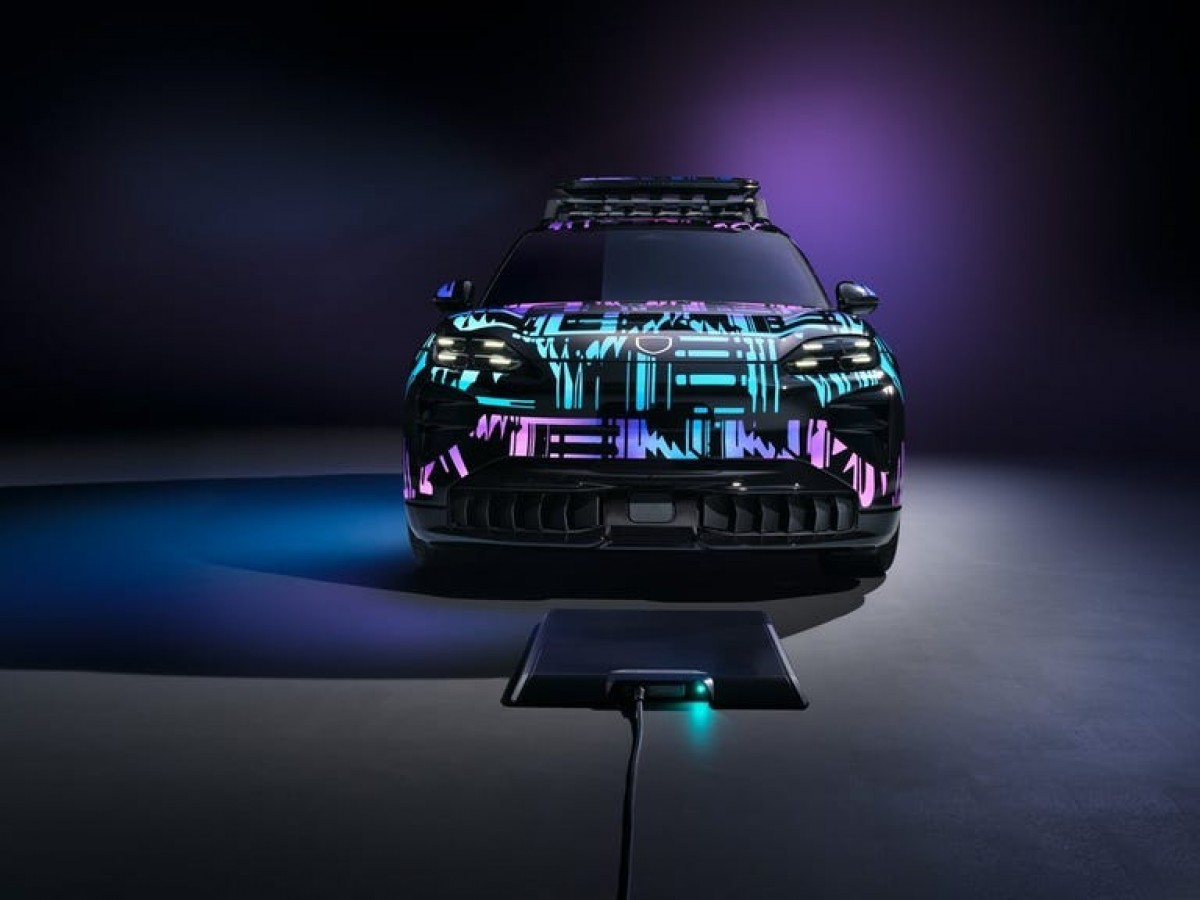

The system is surprisingly simple. It does not require a large wallbox mounted at eye level. Instead, it uses a ground pad, or floor plate. This plate sits on the garage floor or parking space. The unit measures 117 cm in length, 78 cm in width, and stands just 6 cm high.

The installation process is straightforward. A user connects the floor plate to the power supply, and the system is ready. There are no moving parts or robot arms. The second part of the equation is hidden inside the car. A receiver unit sits underneath the Cayenne Electric, positioned just behind the front axle.

These two pieces of hardware communicate to move energy through the air. The floor plate and the car must "introduce" themselves before any power flows - they exchange data via a built-in Wi-Fi module. This process includes a password exchange to prevent electricity theft.

Once the car recognizes the plate, the driver gets help parking. The Porsche Communication Management (PCM) screen inside the cabin changes to a parking view. It uses the car's cameras and sensors to show the vehicle's position. A green dot appears on the screen to represent the receiver in the car, and a green circle represents the charging coil on the floor.

The driver simply steers until the dot lands inside the circle. This system uses the same technology found in "Keyless Go" entry systems. It is intuitive and feels like a simple video game. Once the car is parked and the driver sets the parking brake, the charging starts automatically.

But the engineering team at Porsche had to solve a difficult problem. Wireless charging for phones uses low power, and charging a massive battery in an SUV requires high power and a lot of it. To make this work, the system changes the electricity.

Standard electricity from the grid flows at a frequency of 50 or 60 Hz. The Porsche floor plate takes that energy and converts it to direct current. Then, it converts it back to alternating current but at a much higher speed - 85,000 Hz. This creates a powerful magnetic field between the copper coil in the floor and the coil in the car. This high frequency allows the system to send power across an air gap of up to 18 cm.

The efficiency is also impressive. Even though the energy travels through the air, the system maintains an efficiency rate of over 90 percent. And the driver does not need to park perfectly, because the coils can be misaligned by up to 10 cm, and the system will still work. The software detects the position and adjusts the power flow to compensate.

Sending high voltage through the air requires strict safety measures. If metal objects get between the coils, they could get very hot, similar to a pot on an induction stove. To prevent this, the floor plate has a foreign-object detection system. If it senses a set of keys or a coin on the plate, it simply shuts down.

There is also a "live-object" detection system. If a pet walks under the car or a person reaches underneath, motion sensors stop the charging process immediately. The system also uses shielding plates and ferrites (magnetic materials) to keep the magnetic field focused. This protects the car's electronics and ensures the system stays within electromagnetic safety limits.

This technology opens the door for fully automated experiences. Porsche is currently working on features where the car handles the entire process. In the near future, a driver could hop out in the driveway and press a button on their phone. The Cayenne Electric would then drive itself into the garage, align perfectly over the plate, and top up its battery, all without human help.

Understanding where this new technology fits in the landscape is important. While "Level 1" is the standard plug you use for a lamp, and "Level 2" is the heavy-duty box usually mounted on a garage wall, Porsche's system wants to combine the speed of the latter with the ease of simply parking your car.

The numbers show that the Cayenne's wireless system does not sacrifice speed for convenience. In the past, wireless charging was often seen as a slow, trickle-charge method. But by hitting that 11 kW benchmark, Porsche has ensured that the wireless experience is just as fast as plugging in a heavy cable. The trade-off is simply the installation of the floor plate rather than a wall unit.
